URBAN HEIGHTS: AFFORDABLE LIVING WITH A MODERN TOUCH

Project Description

Completed 4th Year

Senior Capstone

Project Type: Affordable Housing Complex
Location:  200 Convention St, Baton Rouge, LA 70801

Software Used: Revit, Enscape, InDesign, Photoshop, Illustrator, Microsoft Excel

Concept Statement

The affordable housing crisis today is characterized by a significant shortfall in the availability of units, relative to the demand, exacerbated by the rising housing costs, stagnant wages, strenuous zoning laws, and increasing population. As many communities are grappling with the challenges of these shortages, it has become increasingly clear that innovative practices and policy reforms are necessary to address this urgent need. Through the utilization of existing resources and cost-effective rehabilitation, these properties can be a catalyst for community revitalization. Essential amenities, such as fully-equipped kitchen facilities, safe and healthy living spaces, accessible laundry facilities, and convenient access to both grocery stores and health services are just the beginning. Proximity to quality schools allows children to have a better start in life. To effect meaningful change, we must adopt a holistic approach that prioritizes equity, sustainability, and long-term affordability. This requires collaboration among policymakers, developers, and community members to ensure that the housing solutions truly meet the diverse needs of residents.

PROGRESS WORK

FLOORPLANS

FIFTH - SEVENTH FLOORS

FIFTH - SEVENTH FLOORS

THIRD AND FOURTH FLOORS

THIRD AND FOURTH FLOORS

SECOND FLOOR

SECOND FLOOR

GROUND FLOOR

GROUND FLOOR

SECTION CUTS

GROUND FLOOR SECTION CUT - RESTAURANT

GROUND FLOOR SECTION CUT - RESTAURANT

SECOND FLOOR SECTION CUT - GAME ROOM AND LOUNGE, FITNESS ROOM

SECOND FLOOR SECTION CUT - GAME ROOM AND LOUNGE, FITNESS ROOM

SECTION CUT - STUDIO UNIT

SECTION CUT - STUDIO UNIT

SECTION CUT - 2 BED 1 BATH UNIT, 2 BED 1 BATH UNIT

SECTION CUT - 2 BED 1 BATH UNIT, 2 BED 1 BATH UNIT

RENDERINGS

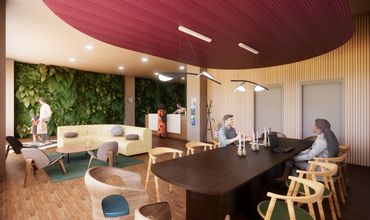

APARTMENT LOBBY

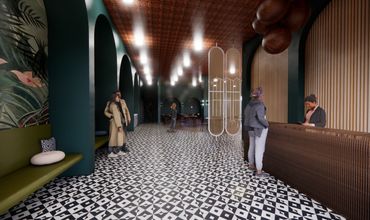

RESTAURANT ENTRY

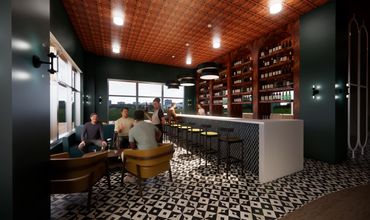

RESTAURANT BAR

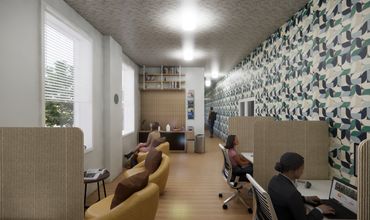

BUSINESS CENTER

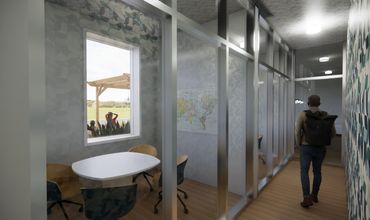

BUSINESS CENTER 2

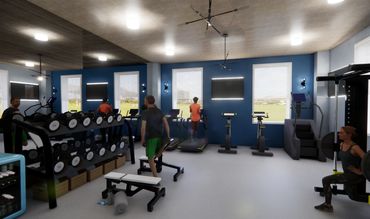

FITNESS ROOM

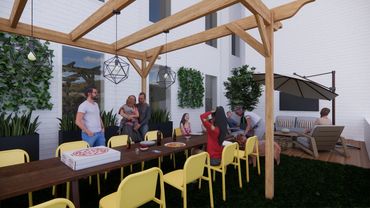

2ND FLOOR TERRACE

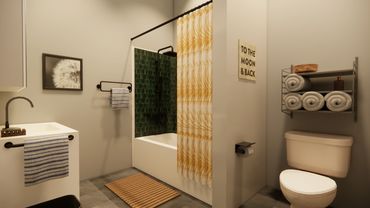

STUDIO UNIT - BATHROOM

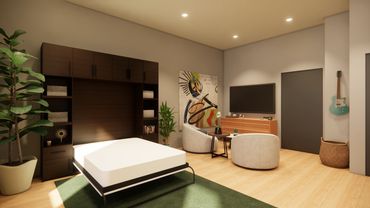

STUDIO UNIT

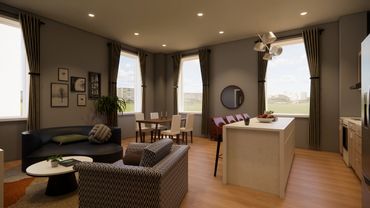

2 BED 1 BATH UNIT - LIVING/KITCHEN

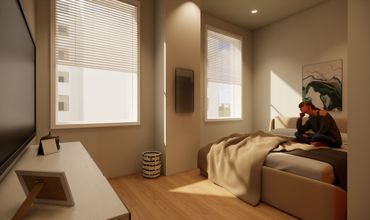

2 BED 1 BATH UNIT - BEDROOM

POSTERS
